7.1m 1.5kw High Efficiency Big HVLS Fans For Workshops
“Light weight but with great wind power”
Our D-700E high efficiency Big HVLS fan can deliver massive airflow quietly to cool down a large area with low energy consumption. It is very suitable for places such as industrial workshops, warehouses or other public spaces.

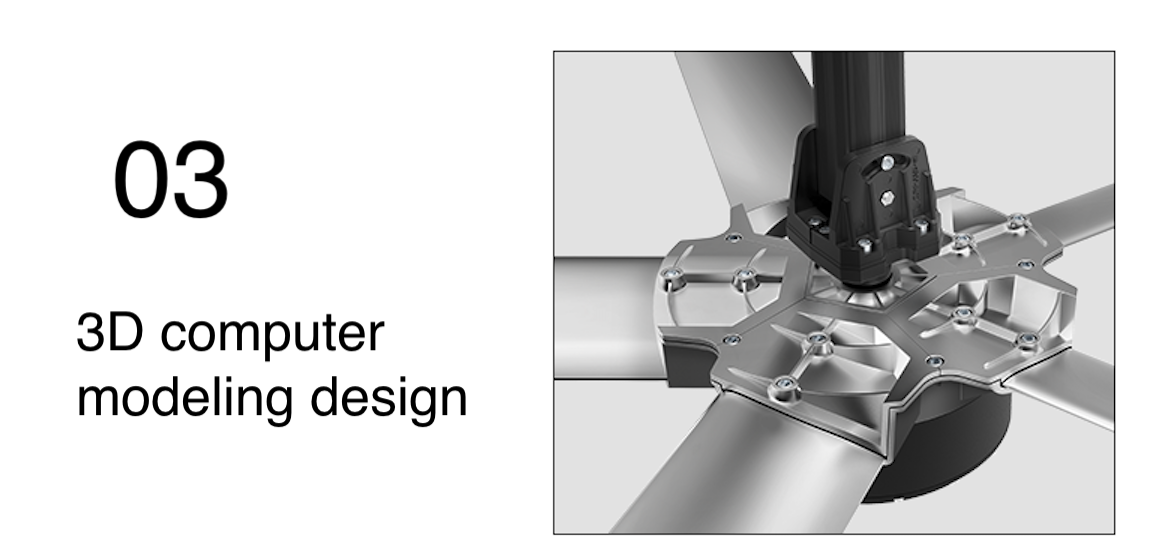

To reduce weight and gain strength, we designed our high efficiency PMSM HVLS fans with 3D computer modeling and use aluminum alloy material to build the main body of the fans.We also uses high strength aluminum alloy materials for the blades to gain strength and well powder-coated the blades to reduce friction.
We also re-designed the motor for reducing its weight and it can still efficiently output great power.
Technical parameters
| Model | D-500S | D-500A | D-500B | D-700D | D-700E |
| Diameters | 3.61m | 4.3m | 5m | 6.6m | 7.1m |
| Air volume | 10000m³/min | 10000m³/min | 10000m³/min | 18000m³/min | 18000m³/min |
| Maximum rev | 120RPM | 95RPM | 80RPM | 65RPM | 60RPM |
| Weight | 16KG | 17KG | 18KG | 47KG | 49KG |
| Output power | 0.7KW | 0.7KW | 0.7KW | 1.5KW | 1.5KW |
| Wind coverage | 200㎡-350㎡ | 200㎡-350㎡ | 200㎡-350㎡ | 500㎡-650㎡ | 500㎡-650㎡ |
| Mounting height | 4m-10m | 4m-10m | 4m-10m | 6m-25m | 6m-25m |
| Mounting | I-beams / Solid beams / Bar joists |
| Moter type | PMSM |
| Voltage | 220V/50Hz |
| Blade meterial | Aluminium alloy |
| Blade numbers | 5 |
| Applications | Workshop / Warehouse / Gym / Church / Dining hall / Station / Livestock poultry farm |
How does it work
Our high efficiency PMSM HVLS fans can deliver massive airflow to cool down a large area when running, it can help to cool down equipment and make people feel better. At the same time it forms air circulations and can help to refreshes the air, take away dust and lower down the humidity of the working area.
Features
※Energy saving: The maximum power of D-700E PMSM HVLS Fan is 1500 Watt.
※Great wind power: The maximum air volume of the D-700E is 18000m³/min.
※Natural air flow: D-700E can form wind just like natural air flow.
※Light fan body:The total weight of the D-700E(main body) is 49kg.
※PMSM motor inside:D-700E uses a PMSM motor and gearbox free.
※Stepless speed regulation: Our controller perfectly matches the fan and can stepless regulate Rotation speed of the fan.
Details
Application spaces
Our high efficiency PMSM HVLS fans can applicate in many different spaces:
spaces: Manufacturing plants/work shops/warehouses
Public spaces: Stations/airports/schools/gyms
Commercial spaces: Exhibition halls/malls/hotels/cafes
Other spaces:Churchs/health clubs/livestock farms
Installations
We can provide a variety of installation methods according to the building structure of the installation site, whether it is steel structure, concrete structure or truss structure, our high efficiency PMSM HVLS fans can be easily and safely mounted on.
Applications photos
